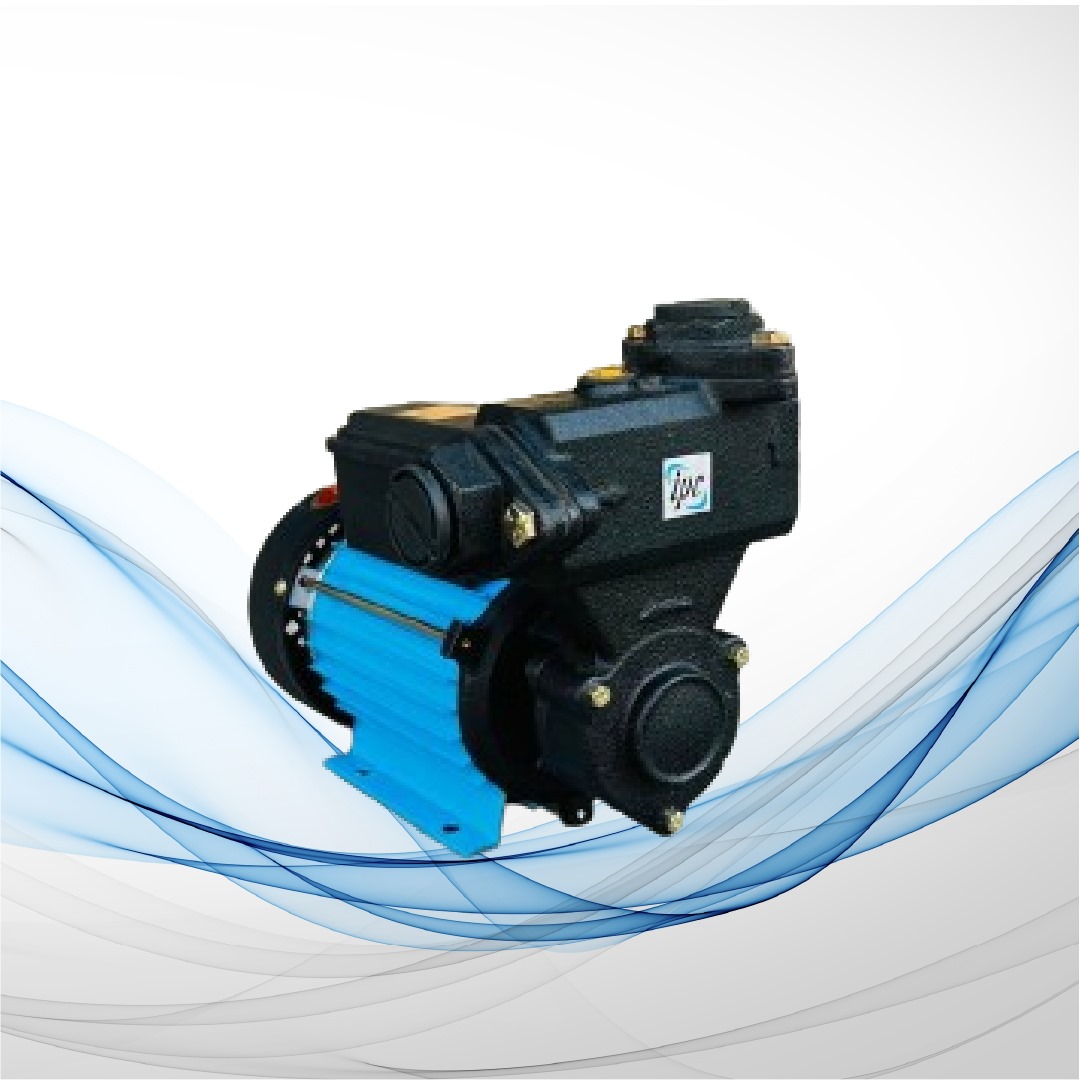

Self-Priming Pump

What is a self-priming pump and how does it work?

Self-priming pumps can prime themselves without the need for external priming. They are typically utilized in applications where the pump must be able to start and run without human intervention. Self-priming pumps are efficient and dependable, making them ideal for a variety of industries and applications.

Self-priming pumps work by circulating fluid within the pump head, resulting in a vacuum. This evacuates air from the suction pipework until fluid enters the pump's impeller.

Some pump designs are classified as self-priming, such as progressing cavity, gear, peristaltic, side channel, peripheral, and diaphragm pumps, due to their positive displacement design, and are designed for fluids more or less viscous than water, such as oils, foodstuffs, solids, certain types of fuel, and chemicals.

Standard centrifugal pumps can also be made self-priming by installing a check valve at the bottom of the suction pipework and filling the casing with water at commencement. This prevents the water from draining out of the suction pipes. A pump running in this manner is known to produce a monomeric suction lift.

Here are a few key differences between self-priming pumps and other types of pumps:

1. Priming Requirements:

Self-Priming Pump: Removes air from the suction line and primes itself without the need for any outside help.

Non-self-priming pump: require human priming or the use of separate priming mechanisms to remove air from the suction line prior to operation.

2. Ease of Installation:

Self-Priming pump : Generally easier to install because they do not require external priming systems.

Non-self-priming pump : May require additional components or priming systems to operate properly, complicatinginstallati.

3. Application Flexibility:

Self-Priming Pump: Ideal for applications in which the pump is located above the fluid source or priming is difficult.

Non-Self-Priming Pumps: These usually work in applications where the pump is placed below the fluid source and priming is simple.

4. Efficiency:

Self-Priming Pump: Provides comfort and effectiveness through removing the need for manual priming, minimizing downtime, and maintaining constant performance.

Non-self-priming pumps: may require more frequent monitoring and maintenance to guarantee appropriate priming and operation.

5. Cost:

Self-Priming Pump: Generally more expensive than non-self-priming pumps due to increased design complexity and self-priming capability.

Non-Self-Priming Pump: Often less expensive for applications where priming can be done easily via external systems or manual methods.

Benefits of Self-Priming Plunger Pumps:

One major advantage of self-priming plunger pumps is that you don't have to prime them every time you use them, which saves time and work.

A self-priming pump is also more suited to handling fluids with differing viscosities or corrosive properties than water, such as strong chemicals used in cleaning, lawn care, and completion equipment.

A real self-priming pump works against gravity by compressing air, causing it to move and draw fluids. They do not have to be buried in liquid or placed below a water tank; instead, they can function laterally or above the level of the fluids being drawn by the pump. Perhaps the most significant advantage of self-priming pumps is their capacity to remain mobile and work efficiently in a variety of configurations and settings.

- Entrained Gas Handling

- Easy to Maintain

- Reliable

- Robust

Maintenance Tips:

- Visual Inspection

- Lubrication

- Vibration

- Maintenance log

Main applications of self-priming pumps

Self-priming pumps are used in a variety of applications. Pumps are used in the food and pharmaceutical industries to execute a variety of functions, including:

• Place liquids ingredients, raw materials, and semi-finished products along process lines.

• Pump CIP fluids to clean and sanitize pipelines and plant components.

• Transfer fluids from one storage vessel to another.

• Empty drums and tanks.

Self-priming pumps are also widely used in the construction, agricultural, and water treatment industries, where it is vital to properly extract and pump water while maintaining high plant efficiency.

Before selecting the application there are a few key factors you should consider:

1. Priming Distance –

Not just the horizontal and vertical runs of pipework but also any accessories such as bends, strainers or valves which can add pressure losses and determine possible priming distance.

2. Fluid Viscosity –

This often determines pump speed, possible flow rate and if other devices are required such as a follower plate to help feed the pump.

3. Size of Solids –

To ensure the impeller can sufficiently handle any particles without clogging.

4. Priming Time -

Ensure that the time required to evacuate the suction pipe is verified, and that the unit does not overheat or take too long to start.

5. Closed or Long Coupled -

Determine if a low-cost unit or a strong long-coupled unit is needed.

6. Power Options -

Select if the pump will be powered by a single or three-phase motor, hydraulics, or an engine.

7. Baseplate -

Whether your pump will remain in place, require a trailer for movement over your land/domestic roads, or be mounted on a pontoon for dewatering, there are numerous options to consider.

8. Controls -

Specify how the pump will start, stop, and operate as part of your system, as well as whether certain events can be triggered.

Conclusion/overall:

Despite other designs, our self-priming pumps have an armored volute that protects the main casing from abrasive wear and high-velocity solid impact.

Constructed of ductile iron, together with the impeller,self-priming pump ensures that units are sturdy, can handle solids up to 50 x 24mm in diameter without loss of flow, and will survive for many years.

For additional information, please contact our specialists immediately; they can assist you in resolving any issues you may be experiencing or in beginning the process of installing a new program.
